Computer diagnostics of the M70B50 engine, DME 1.7 on BMW E31

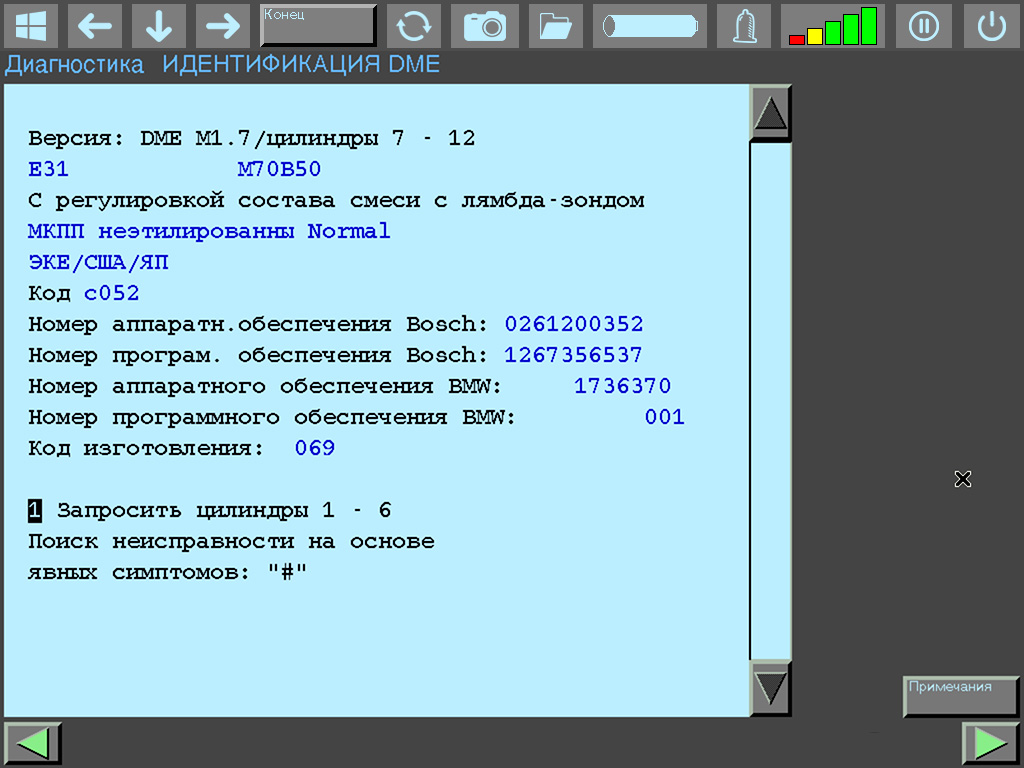

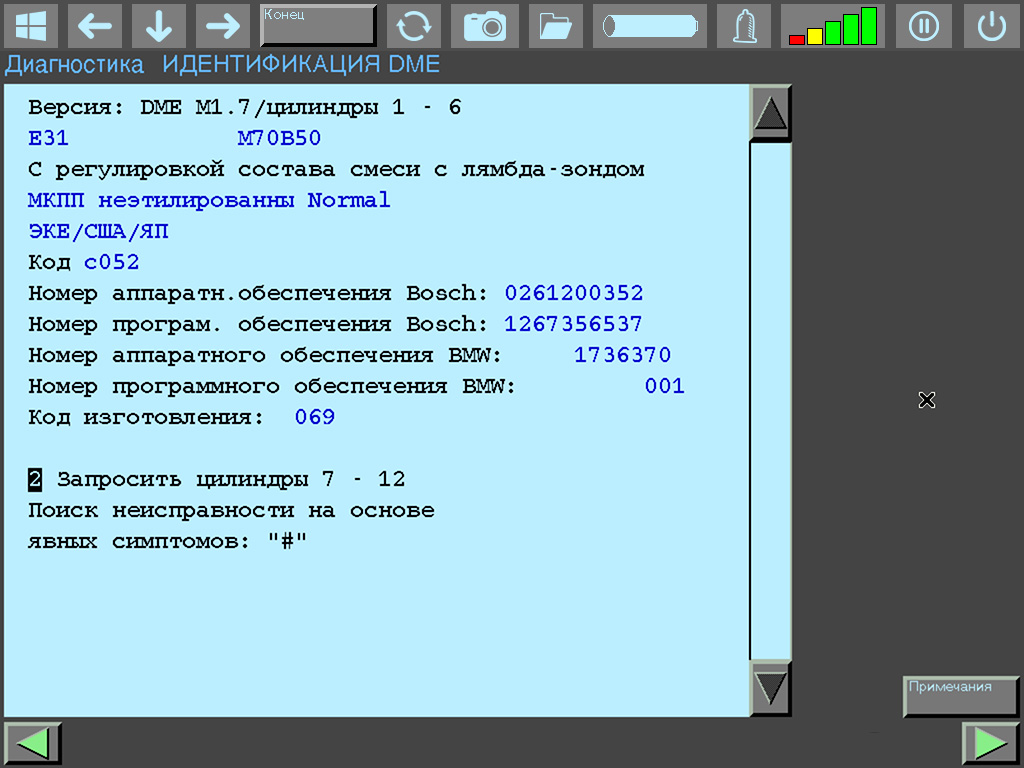

ECU Identification



DME M1.7 of the M70B50 engine with lambda-controlled mixture adaptation, manual transmission version for US/EU/Japan market



• Coding code: c052
• Bosch hardware number: 0261200352
• Bosch software number: 1267356537
• BMW hardware number: 1736370
• BMW software number: 001
• Manufacturing code: 069

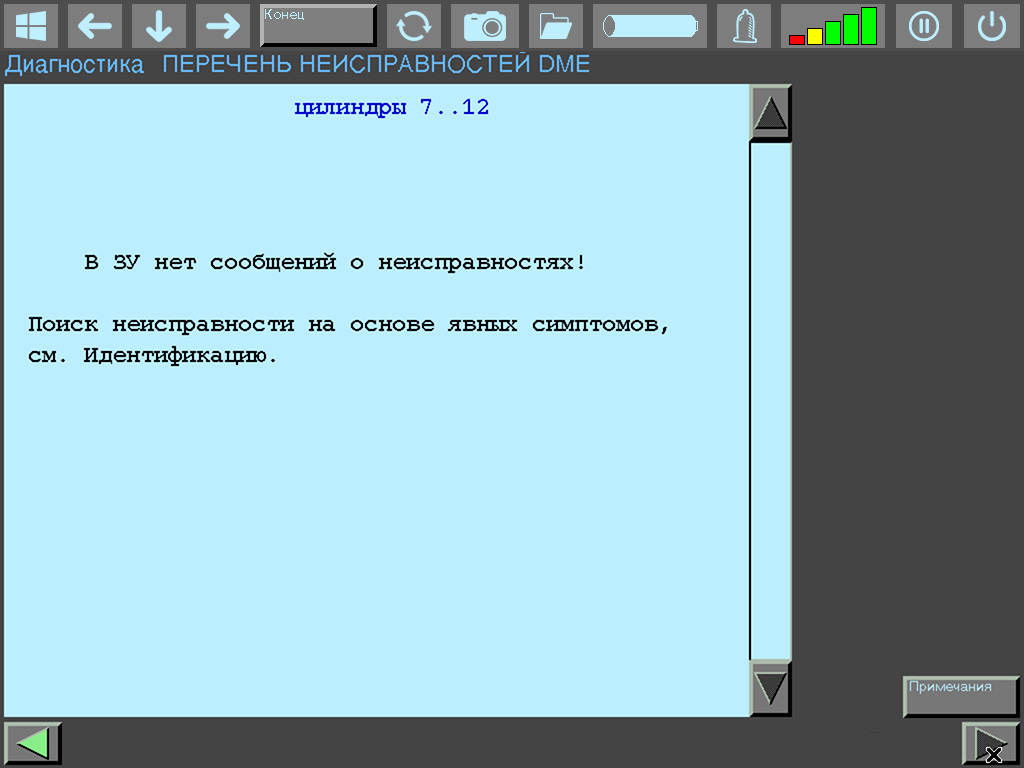

Stored Fault Codes



No faults stored!





Live Data

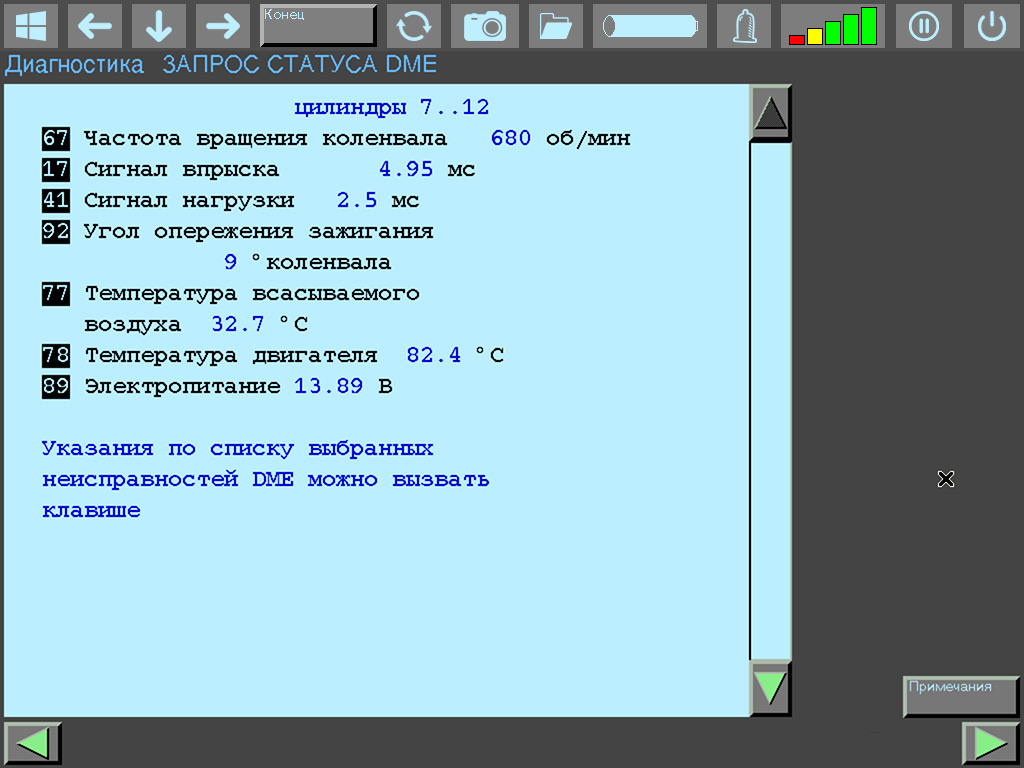

 67   Engine speed: 680 RPM



 17   Injection signal: 4.63 ms



 41   Load signal: 2.15 ms



 92   Ignition advance angle: 10° BTDC



 77   Intake air temperature: 35.8 °C



 78   Engine temperature: 75.3 °C



 89   Power supply voltage: 13.89 V

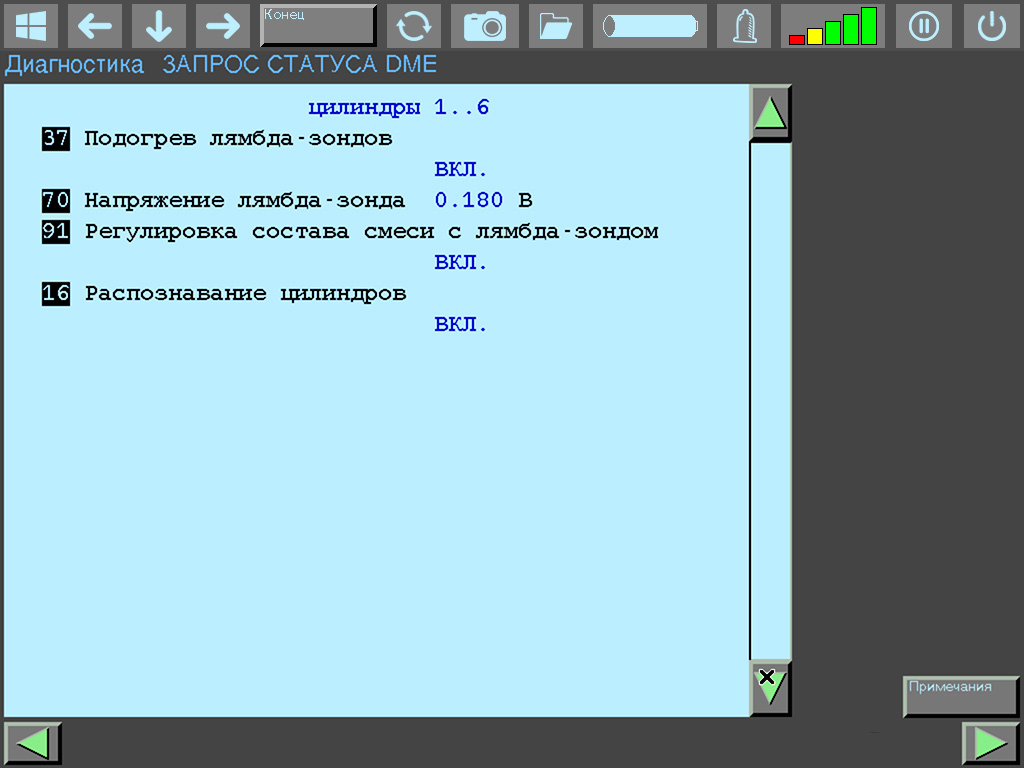

 37   Lambda sensor heater: ON



 70   Lambda sensor voltage: 0.180 V



 91   Lambda mixture control: active



 16   Cylinder recognition: active

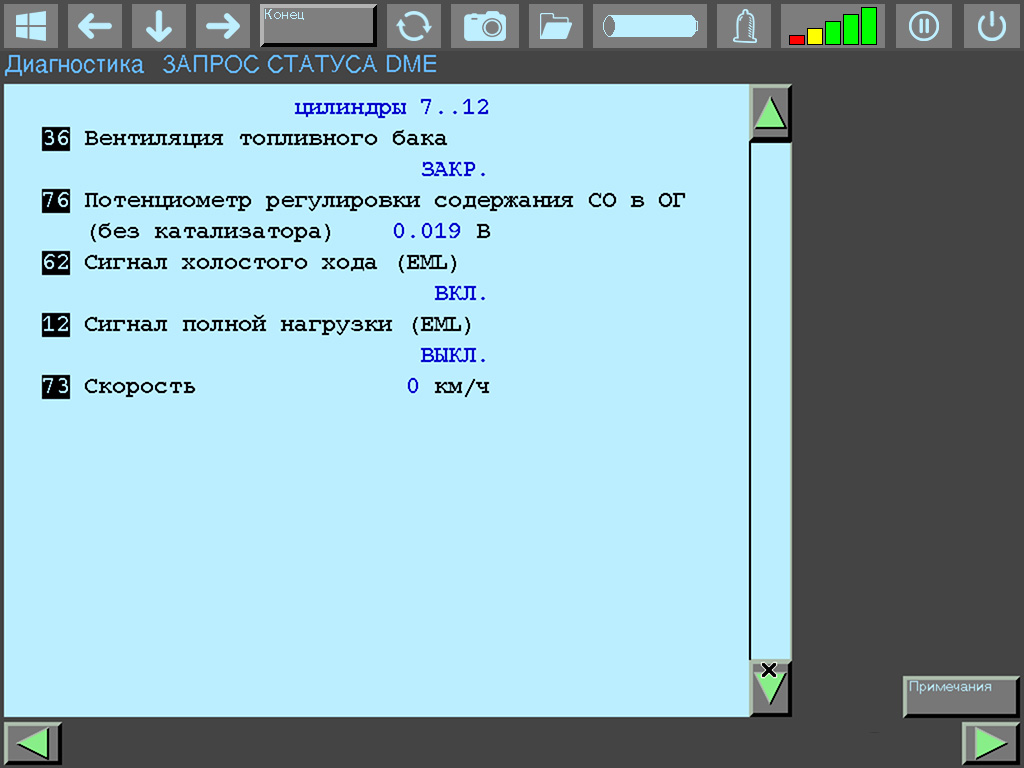

 36   Fuel tank ventilation: OFF



 76   CO potentiometer voltage: 1.406 V



 62   Idle signal from EML: activated



 12   Full load signal from EML: not activated



 73   Vehicle speed: 0 km/h

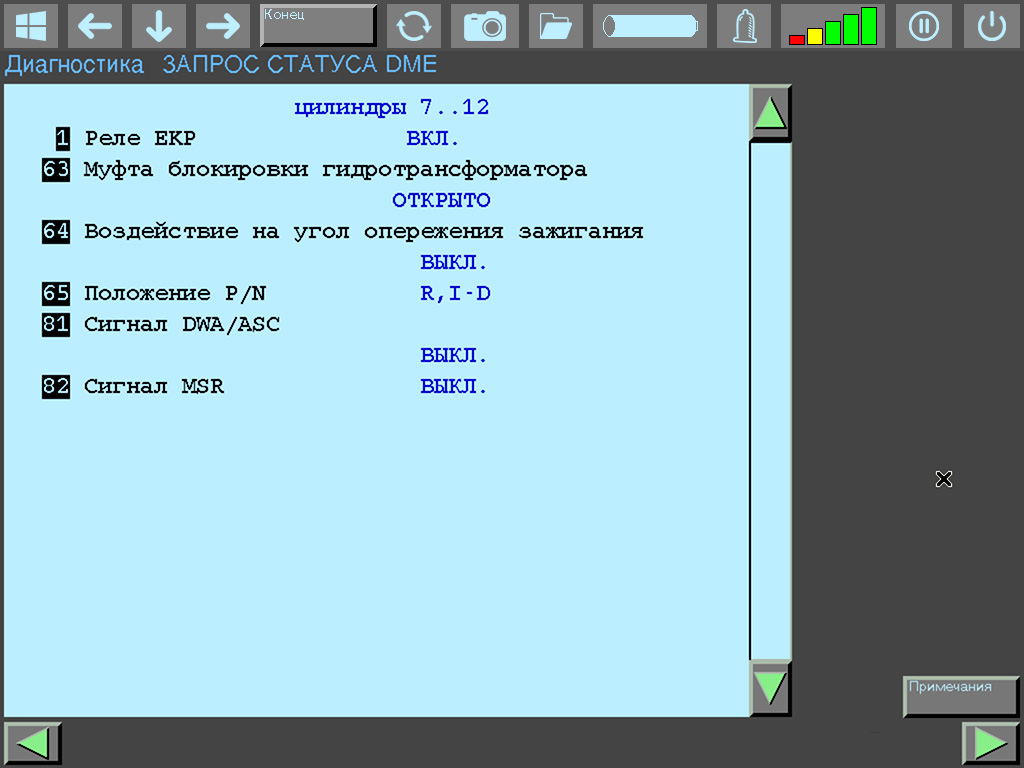

 1   Fuel pump relay: activated



 63   Torque converter lockup clutch: activated



 64   Ignition timing intervention: inactive



 65   Transmission selector position P/N: R,I-D



 81   DWA/ASC signal: not activated



 82   MSR signal: not activated

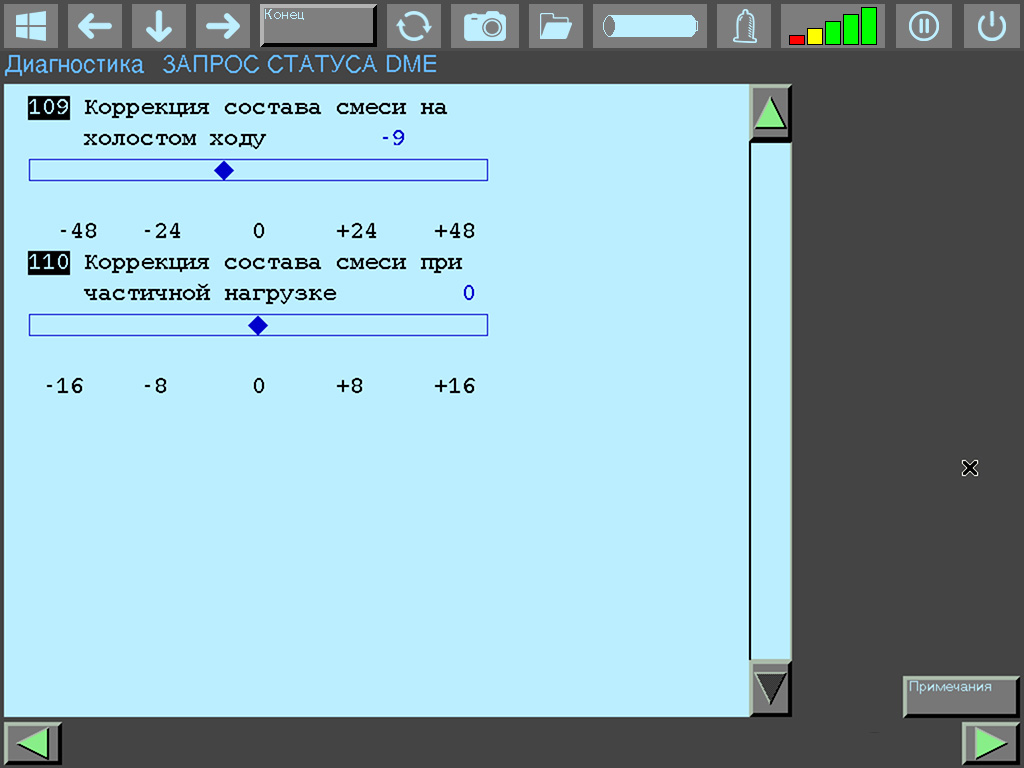

 109   Idle mixture adaptation (via lambda): 32



 110   Partial load mixture adaptation (via lambda): 0
