Computer diagnostics of the M60B40 engine, Bosch DME 3.3 on BMW E32

Bosch hardware 0261200404 / software 1267357689 and BMW hardware 1748837 / software 101 for DME M3.3 of the M60B40 engine

ECU Identification



DME M3.3 of the eight-cylinder M60 engine



  • Bosch hardware number: 0261200404
  • Bosch software number: 1267357689
  • BMW hardware number: 1748837
  • BMW software number: 101
  • Check number: 1738474
  • Part number: 1740020

Stored Fault Codes



 26   B+ supply to engine control unit

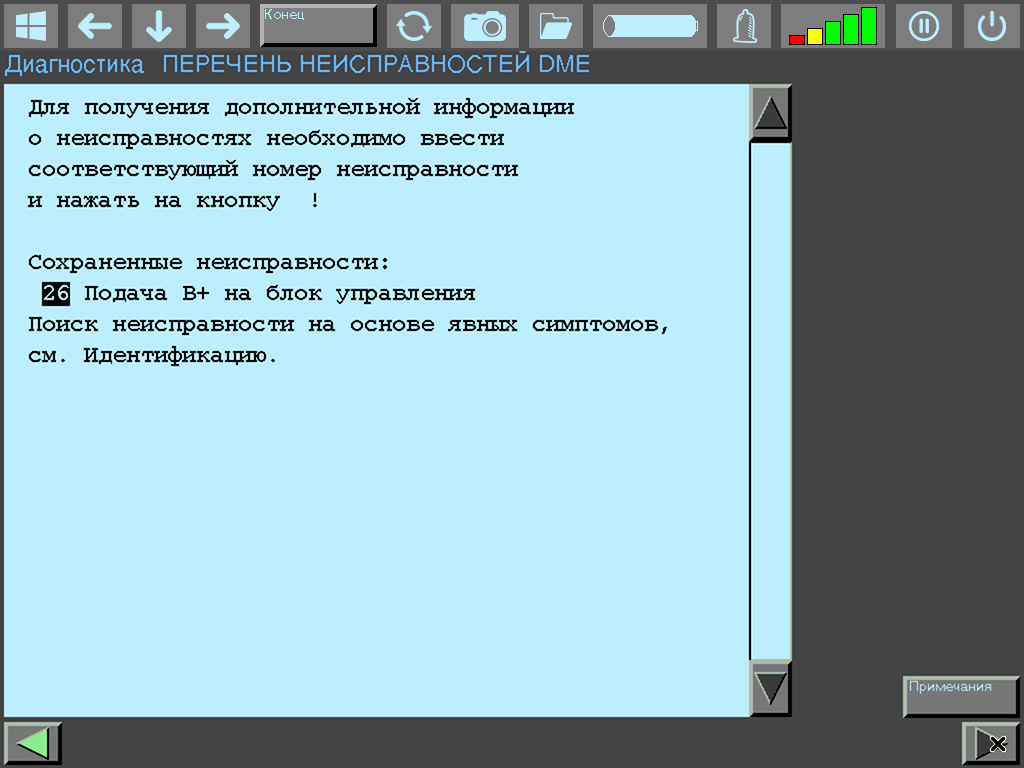

Fault code 26 in DME M3.3 control unit: B+ supply to engine control unit

Live Data



 47   Engine speed: 840 RPM



 78   Engine temperature: 55 °C



 77   Intake air temperature: 20 °C



 92   Ignition advance angle: 6° BTDC



 114   Injection signal cylinder #1: 2.751 ms



 13   Lambda sensor #1 voltage: 0.45 V



 12   Lambda sensor #2 voltage: 0.44 V



 100   Lambda integrator #1: 1



 99   Lambda integrator #2: 1

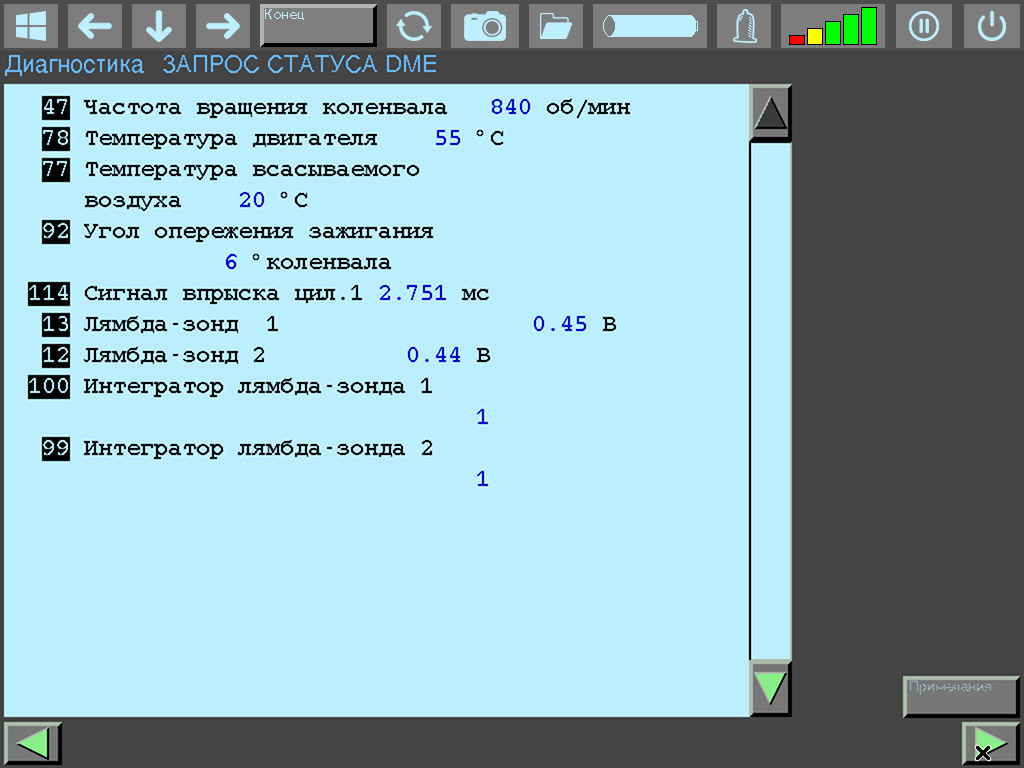

Parameters 47, 78, 77, 92, 114, 13, 12, 100, 99: RPM, temperatures, ignition timing, injection time, lambda voltages and integrators





 41   Air flow meter signal: 0.2 V | 40 kg/h



 93   Load signal: 2.3 ms



 73   Throttle valve: 0.7 V | idle



 101   Fuel cut-off at idle: not active

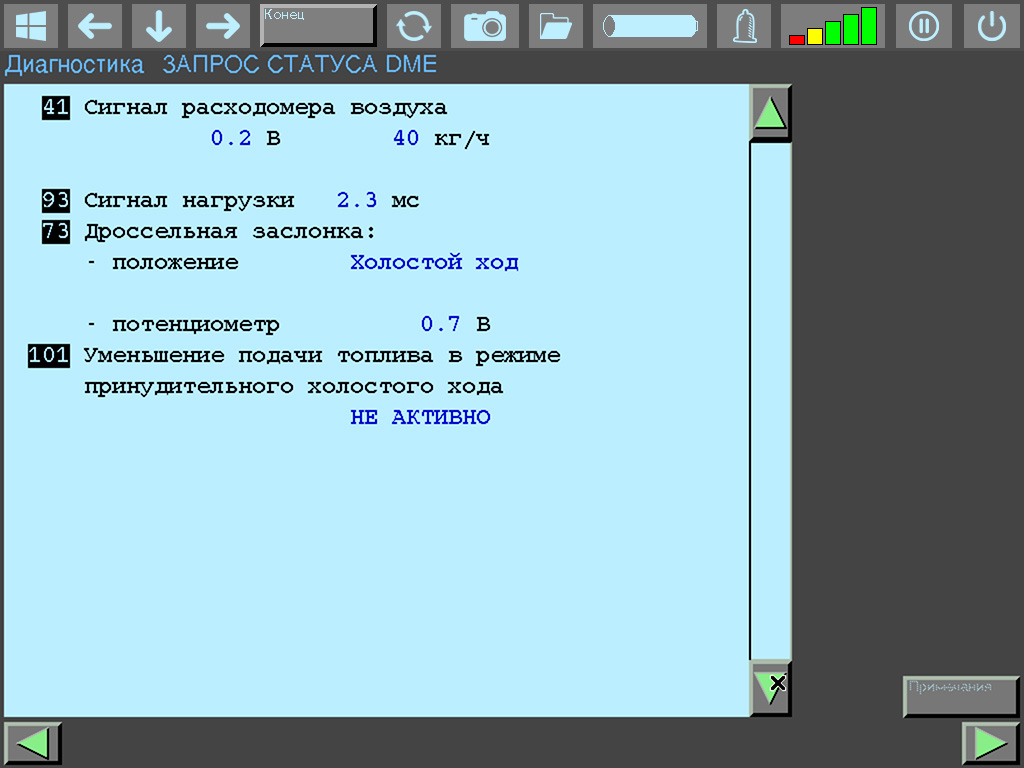

Parameters 41, 93, 73, 101: air flow meter signal, load signal, throttle position, fuel cut-off at idle
