Computer diagnostics of the petrol engine M20B25 on BMW E30

Computer diagnostics of the M20B25 engine on BMW E30

ECU Identification



M20B25 without lambda-controlled mixture adaptation, manual transmission version for US market



  • Coding code: a85e
  • Bosch hardware number: 0261200380
  • Bosch software number: 1267356204
  • BMW hardware number: 1730576
  • BMW software number: 001
  • Manufacturing code: 952

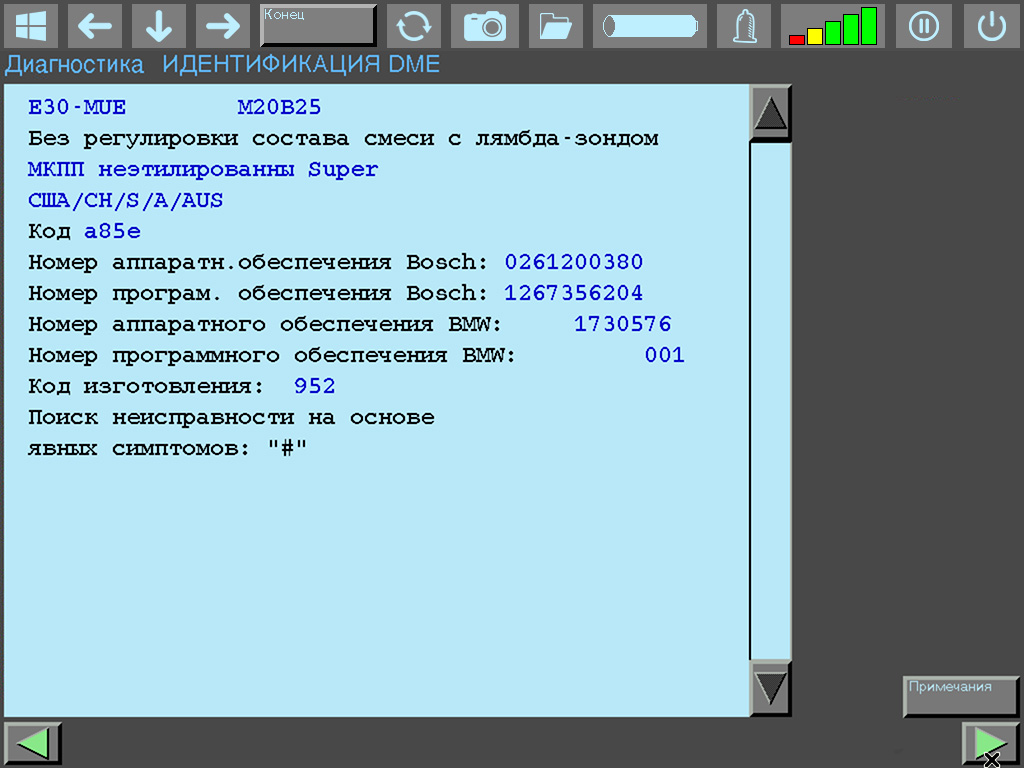

ECU identification window DME 0261200380 (code A85E) on M20B25 without lambda control

Stored Fault Codes



 54   Torque converter lockup clutch

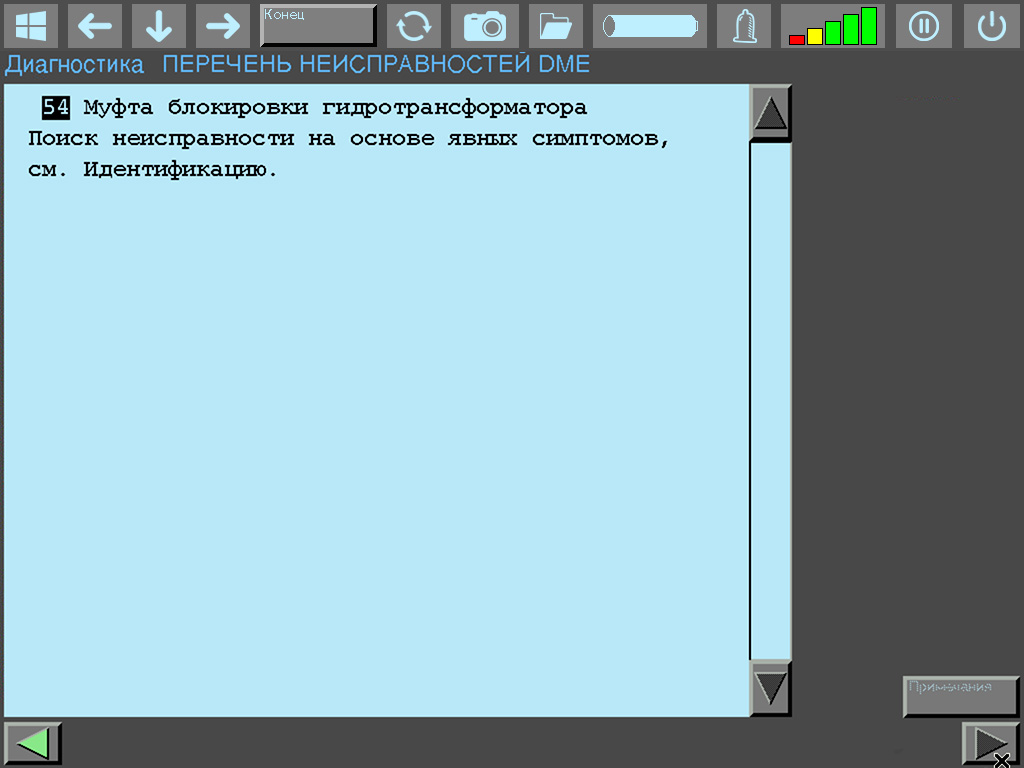

Fault list in DIS: code 54 - torque converter lockup clutch fault

Live Data



 3   EKR relay: activated



 5   Fuel tank ventilation: not activated



 10   Lambda mixture control: inactive



 40   Compressor: OFF



 41   Air conditioning: OFF



 42   Transmission selector position P/N: activated



 51   Ignition timing intervention: not active



 52   Neutral position switch: activated



 53   Full load switch: OFF



 56   Semi-sequential fuel injection: ON

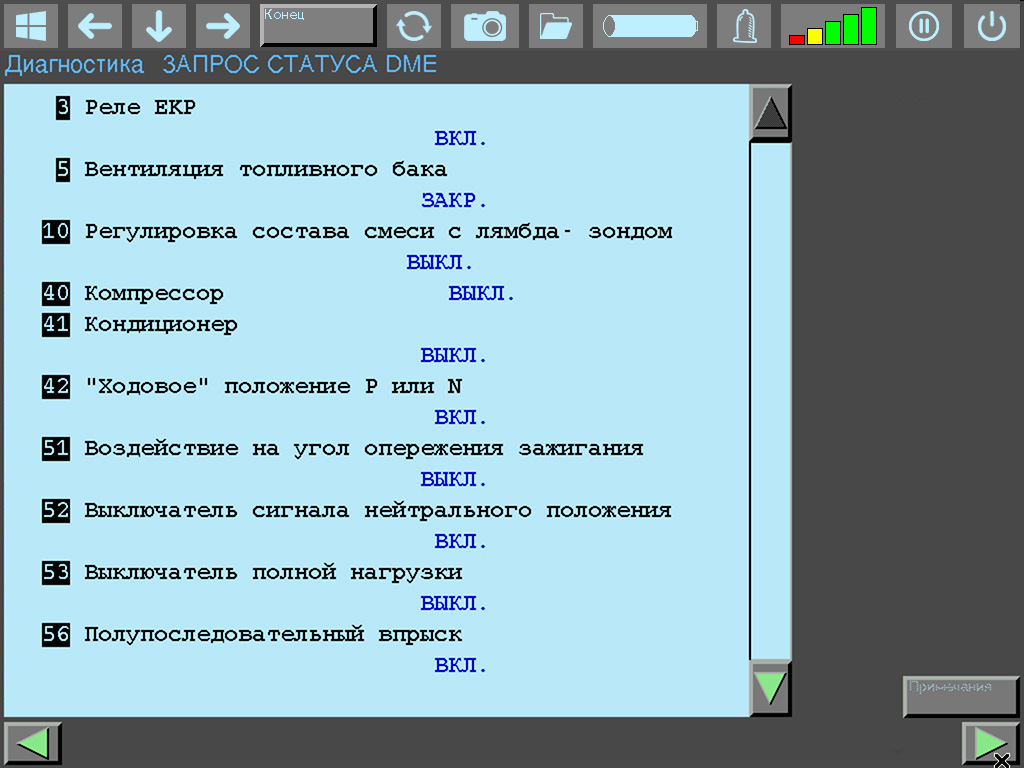

DIS live-data group 1: system statuses (EKR, lambda, A/C, P/N, injection)





 1   Ignition advance angle: 9° BTDC



 6   Engine speed: 760 RPM



 7   Air flow meter signal: 0.213 V



 29   Vehicle speed: 0 km/h



 32   Injection signal: 4.64 ms



 37   ECU supply voltage: 14.44 V



 43   Lambda sensor voltage: 0.447 V



 44   Intake air temperature: 31 °C



 45   Engine temperature: 89 °C



 77   Load signal tL: 2.2 ms

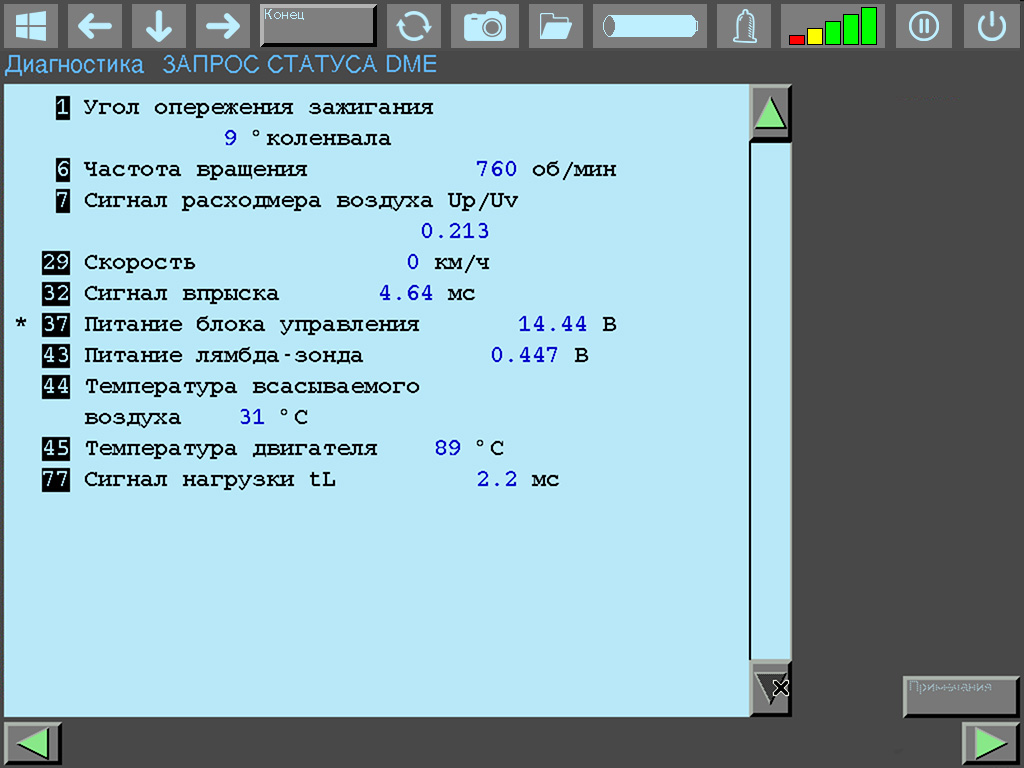

DIS live-data group 2: numerical parameters (ignition timing, RPM, AFM voltage, injection time, temperatures)
