Computer diagnostics of the petrol engine M30B30 on BMW E32

Computer diagnostics of the M30B30 engine on BMW E32

ECU Identification



M30B30 in E32 chassis with lambda-controlled mixture adaptation, unleaded Normal version with manual transmission



  • Coding code: c05e
  • Bosch hardware number: 0261200178
  • Bosch software number: 1267355795
  • BMW hardware number: 1726684
  • BMW software number: 001
  • Manufacturing check code: 944

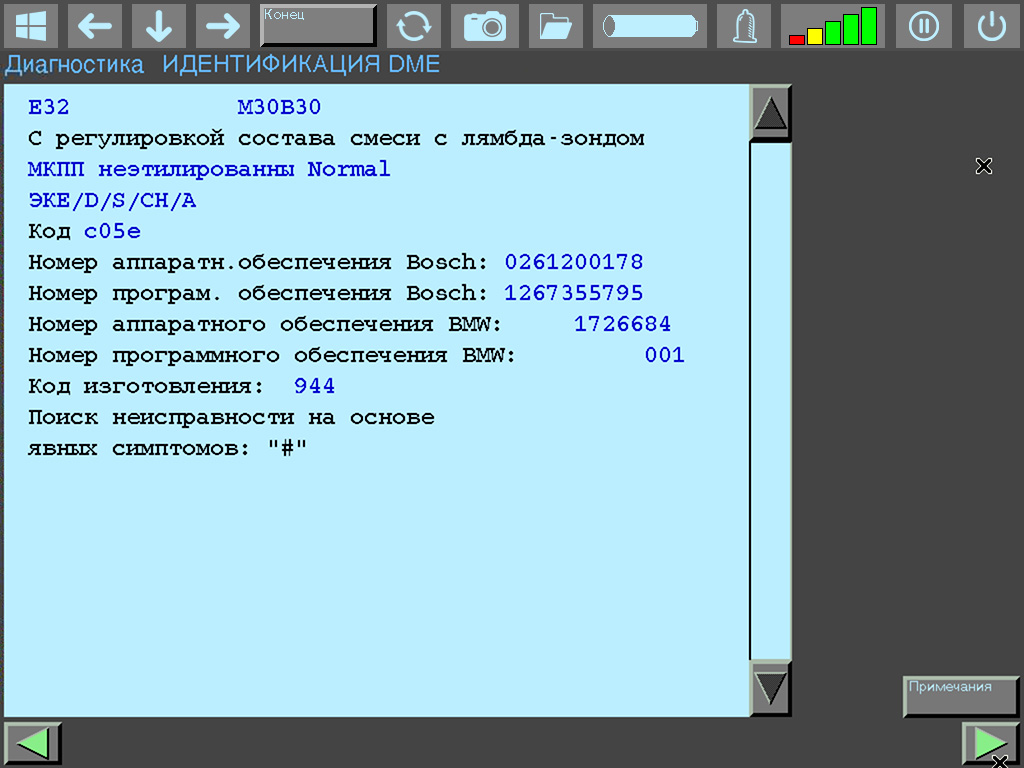

ECU identification window DME 0261200178 (code C05E) for M30B30 E32 Normal with lambda control

Stored Fault Codes



No faults stored!

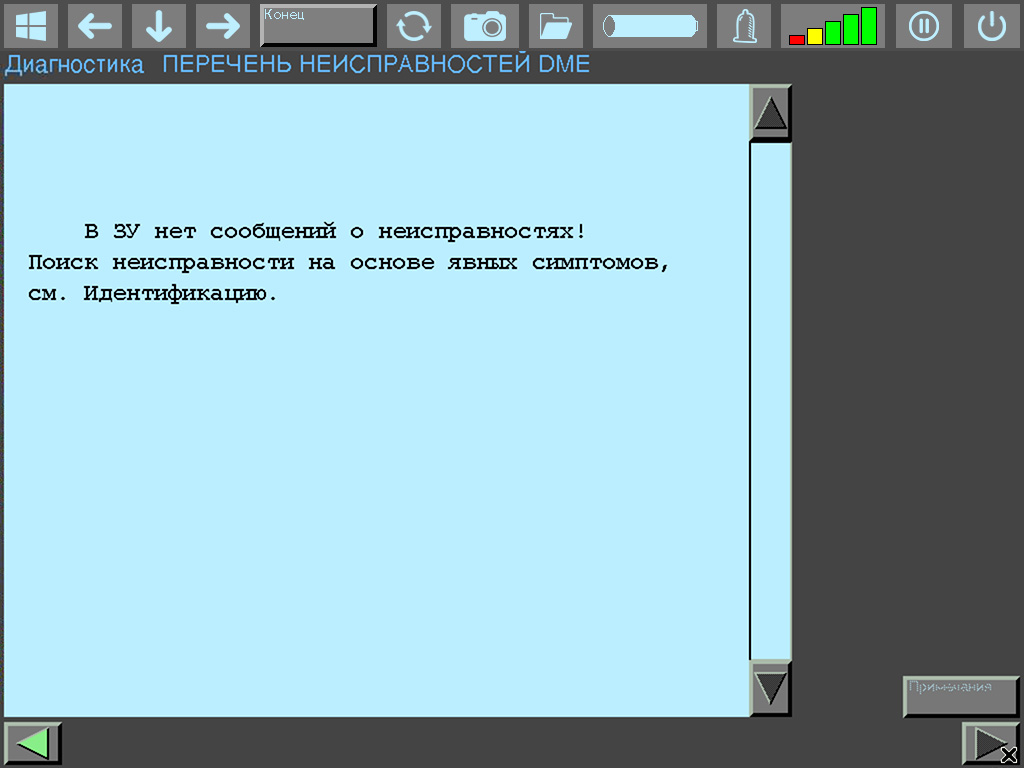

DIS window with 'No faults stored!' message for M30B30 engine ECU

Live Data



 3   Fuel pump relay: ON



 5   Fuel tank ventilation: activated



 10   Lambda mixture control: OFF



 40   A/C compressor: OFF



 41   A/C switch: not activated



 42   Drive position P/N: activated



 51   Ignition timing intervention: not active



 52   Neutral position switch: activated



 53   Full load switch: OFF



 56   Semi-sequential fuel injection: OFF

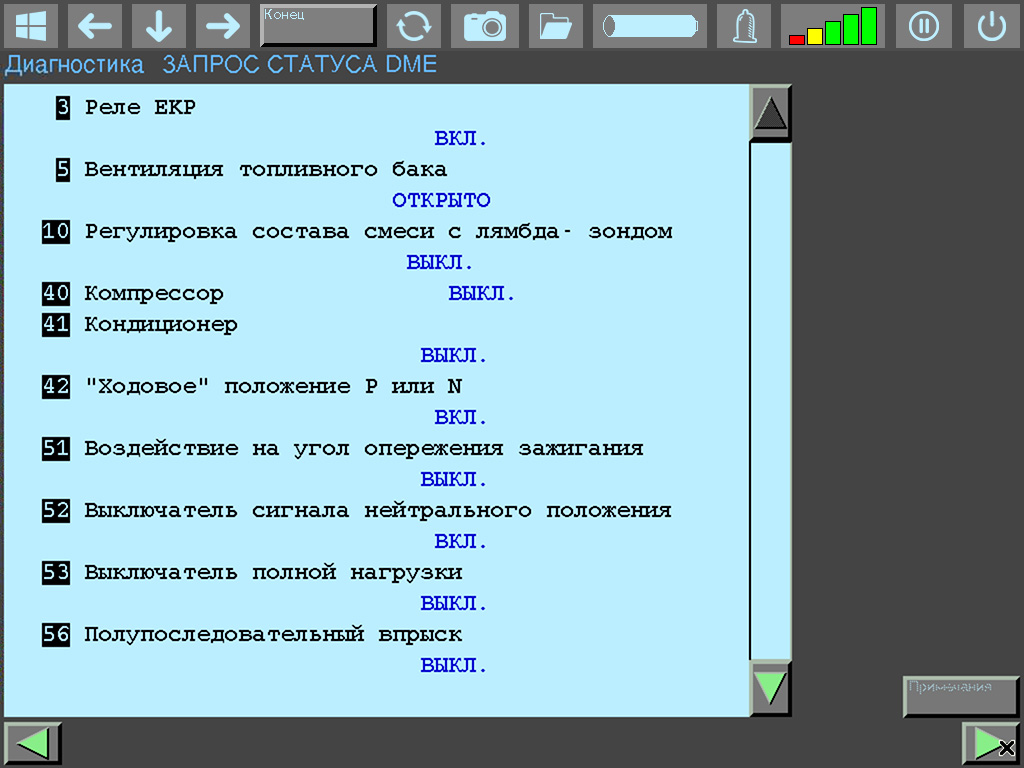

DIS live-data status signals: fuel pump, tank ventilation, lambda, A/C, P/N, injection





 1   Ignition advance angle: 12° BTDC



 6   Engine speed: 640 RPM



 7   Air flow meter voltage: 0.342 V



 29   Vehicle speed: 0 km/h



 32   Injection signal: 2.39 ms



 37   DME power supply: 14.17 V



 43   Lambda sensor voltage: 0.558 V



 44   Intake air temperature: 33 °C



 45   Coolant temperature: 59 °C



 77   Load signal: 3.8 ms

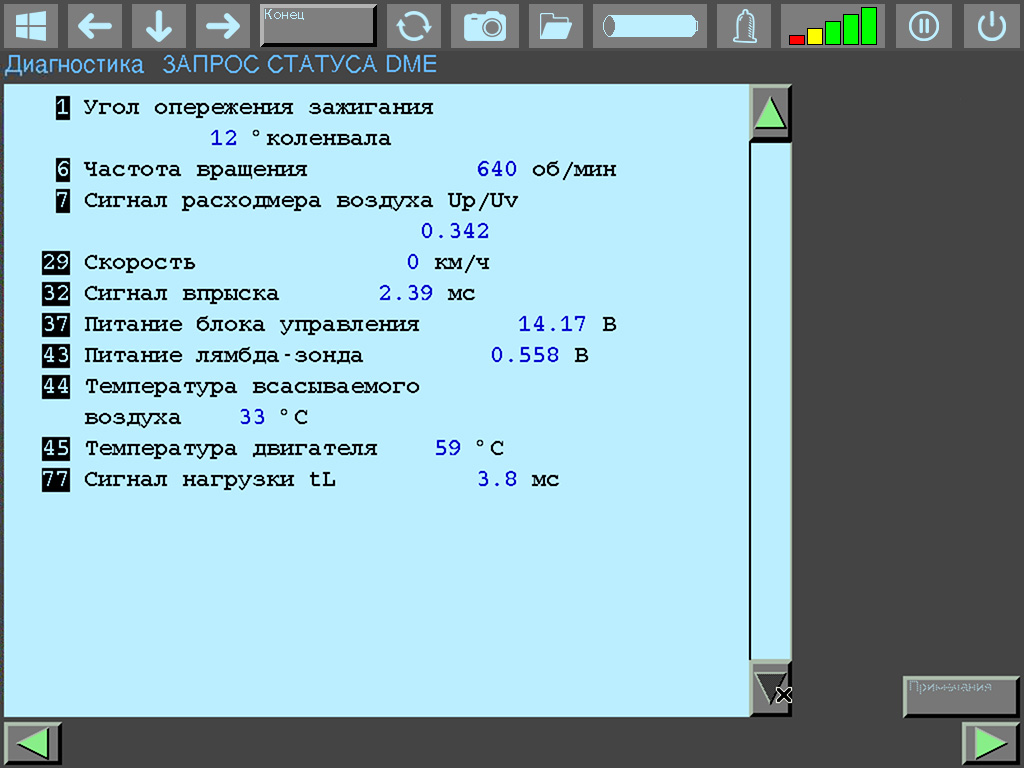

DIS live-data measured parameters: ignition timing, RPM, AFM, injection, voltage, temperatures
