Computer diagnostics of the petrol engine M40B18 on BMW E36

ECU Identification



M40B18 with lambda-controlled mixture adaptation, unleaded Normal version with manual transmission



• Coding code: c01e
• Bosch hardware number: 0261200520
• Bosch software number: 1267357066
• BMW hardware number: 1739041
• BMW software number: 001
• Manufacturing code: 265

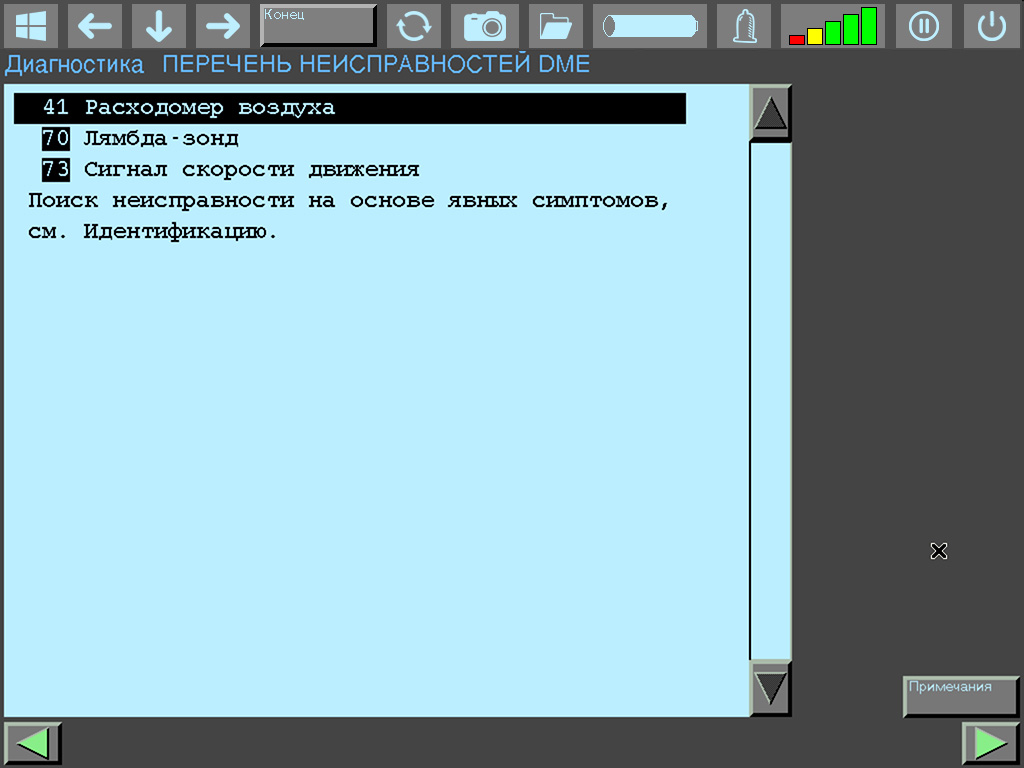

Stored Fault Codes



 41   Air flow meter fault



 70   Lambda sensor fault



 73   Vehicle speed sensor fault





Live Data



 67   Engine speed: 1000 RPM



 92   Ignition advance angle: 5° BTDC



 78   Engine temperature: 57 °C



 77   Intake air temperature: 4 °C



 16   Cylinder recognition: OFF



 94   Air flow meter signal: 0.614 V



 41   Load signal: 9 ms



 17   Injection signal: 9.15 ms



 12   Throttle position: 0.77 V | partial load



 91   Lambda mixture control: OFF

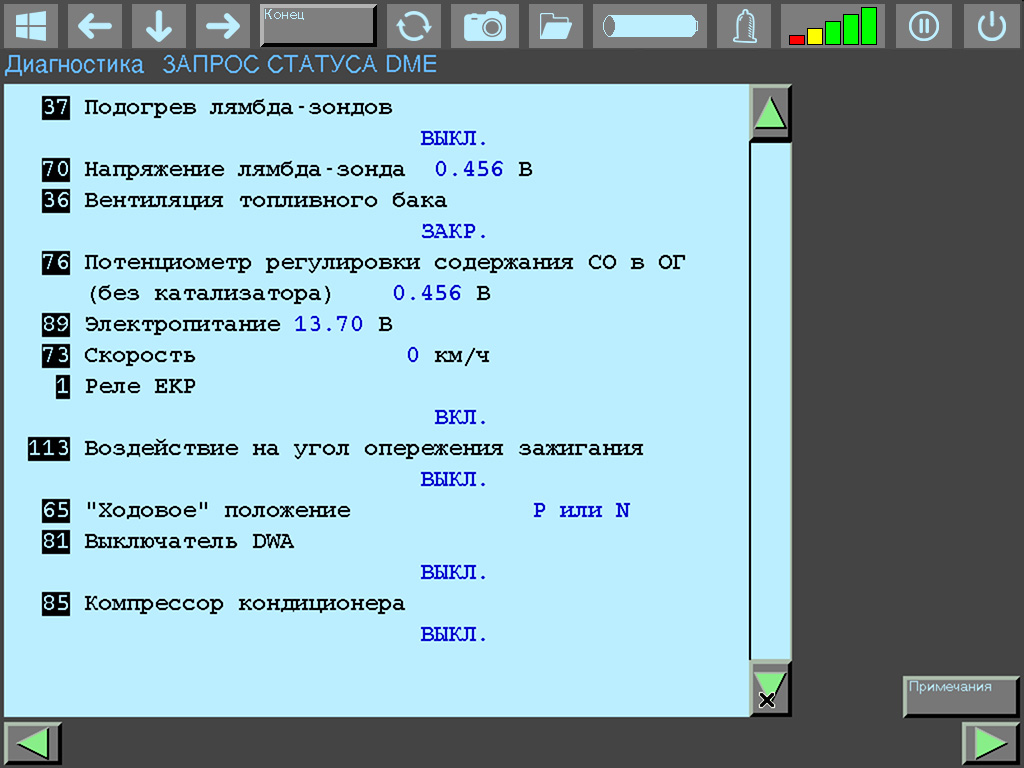

 37   Lambda sensor heater: OFF



 70   Lambda sensor voltage: 0.456 V



 36   Fuel tank ventilation relay: not activated



 76   CO adjustment potentiometer: 0.456 V



 89   Supply voltage: 13.70 V



 73   Vehicle speed: 0 km/h



 1   EKR relay: activated



 113   Ignition timing intervention: not active



 65   Transmission selector position: P/N



 81   Anti-theft alarm: OFF



 85   A/C compressor: OFF

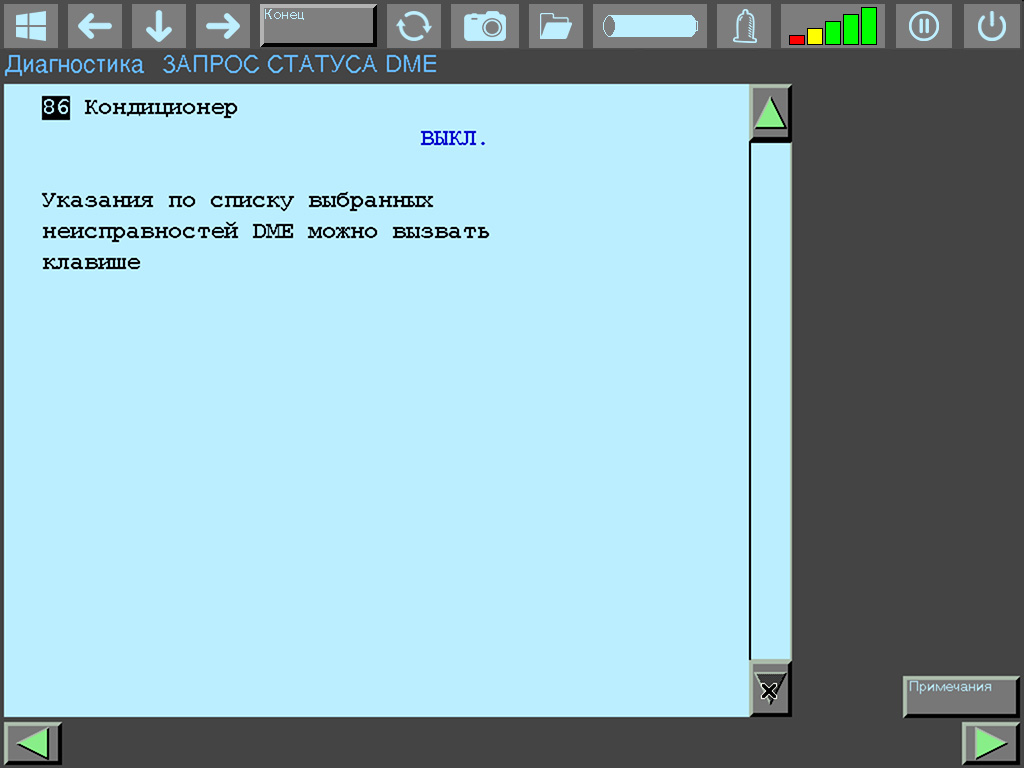

 86   Air conditioning: OFF
