Computer diagnostics of the petrol engine BMW M20B20 on the E34 chassis

ECU Identification



M20B20 with lambda-controlled mixture adaptation, manual transmission version



• Coding code: c09e
• Bosch hardware number: 0261200381
• Bosch software number: 1267356205
• BMW hardware number: 1730574
• BMW software number: 001
• Manufacturing code: 952

Stored Fault Codes

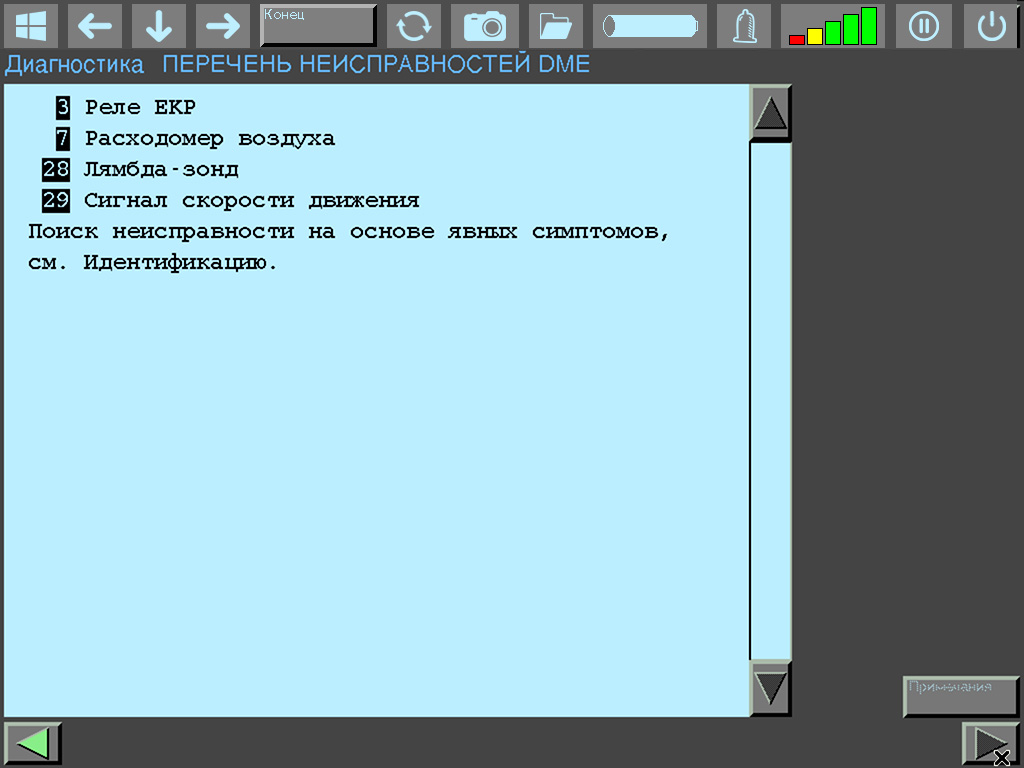

 3   EKR relay (fuel pump)



 7   Air flow meter



 28   Lambda sensor



 29   Vehicle speed signal





Live Data

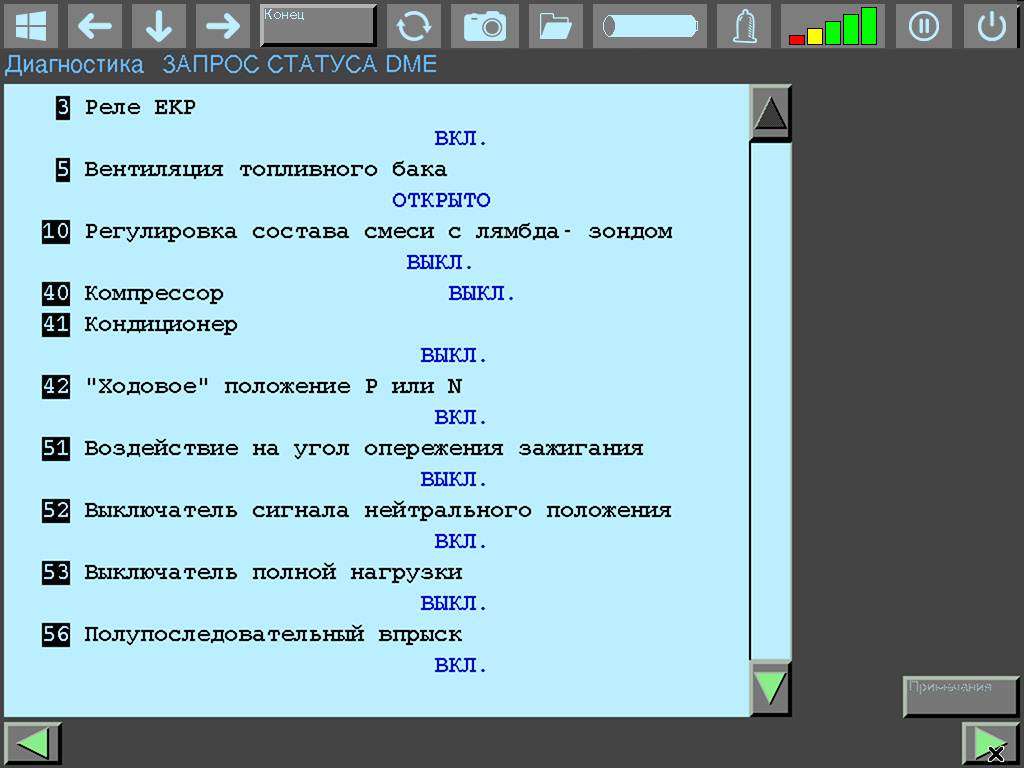

 3   EKR relay: activated



 5   Fuel tank ventilation: activated



 10   Lambda mixture control: OFF



 40   Compressor: OFF



 41   Air conditioning: OFF



 42   Drive position P/N: activated



 51   Ignition timing intervention: not active



 52   Neutral position switch: activated



 53   Full load switch: OFF



 56   Semi-sequential fuel injection: ON

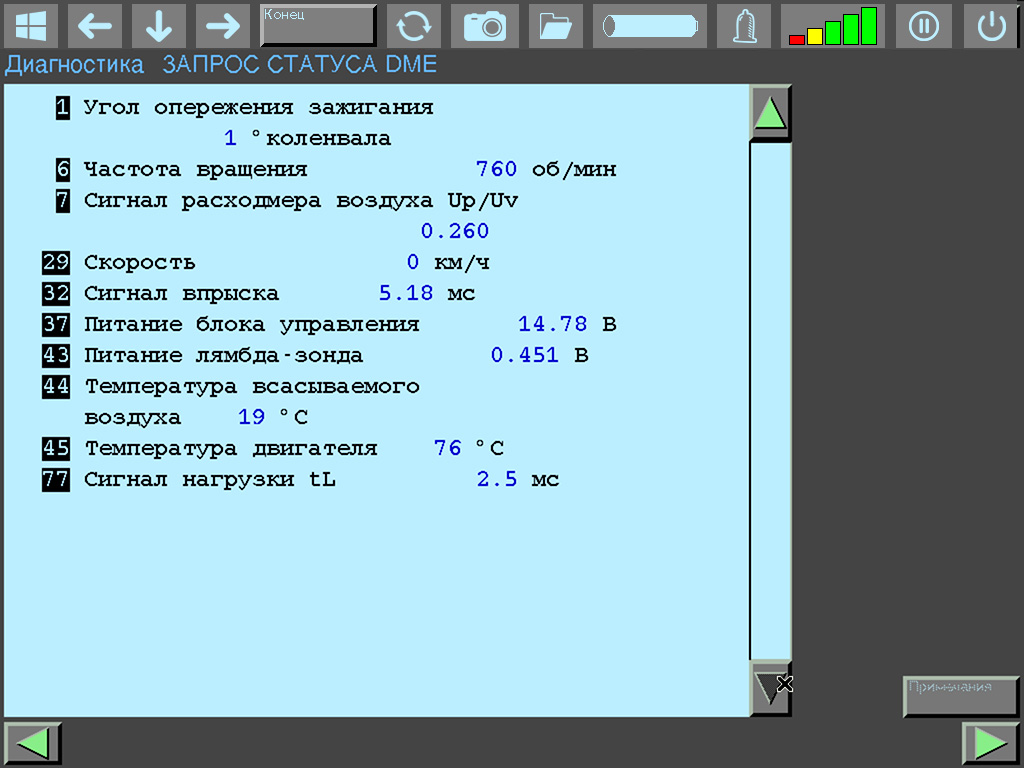

 1   Ignition advance angle: 1° BTDC



 6   Engine speed: 760 RPM



 7   Air flow meter signal: 0.260 V



 29   Vehicle speed: 0 km/h



 32   Injection signal: 5.18 ms



 37   ECU supply voltage: 14.78 V



 43   Lambda sensor voltage: 0.451 V



 44   Intake air temperature: 19 °C



 45   Engine temperature: 76 °C



 77   Load signal tL: 2.5 ms
