Computer diagnostics of the petrol engine M42B18 on BMW E36

ECU Identification



M42B18 in E36 chassis with lambda-controlled mixture adaptation for ECE/EC/S/CH/A/USA markets



• Coding code: 801e
• Bosch hardware number: 0261200950
• Bosch software number: 1267357108
• BMW hardware number: 1739423
• BMW software number: 001
• Manufacturing code: 265

Stored Fault Codes



 12   Throttle position potentiometer



 41   Air flow meter fault



 70   Lambda sensor fault





Live Data

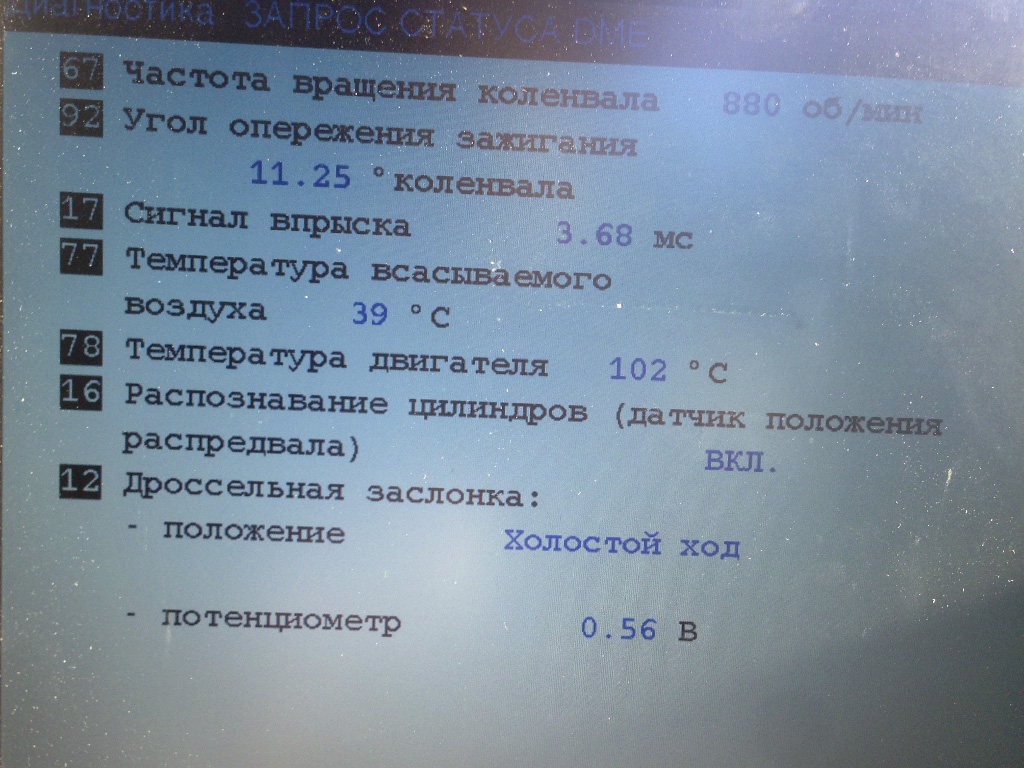

 67   Engine speed: 880 RPM



 92   Ignition advance angle: 11.25° BTDC



 17   Fuel injection signal: 3.68 ms



 77   Intake air temperature: 39 °C



 78   Engine coolant temperature: 102 °C



 16   Cylinder recognition (camshaft position sensor): active



 12   Throttle position: 0.56 V | idle

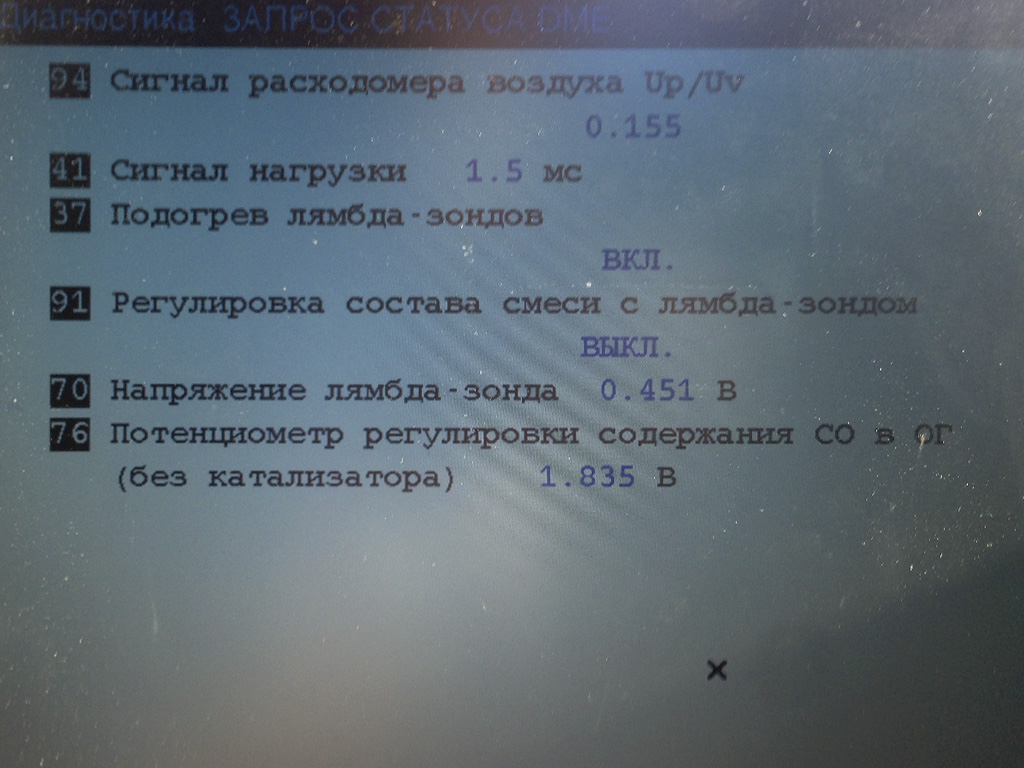

 94   Air flow meter voltage: 0.155 V



 41   Load signal: 1.5 ms



 37   Oxygen sensor heater: ON



 91   Lambda mixture control: OFF



 70   Oxygen sensor voltage: 0.451 V



 76   CO adjustment potentiometer (in air flow meter): 1.835 V

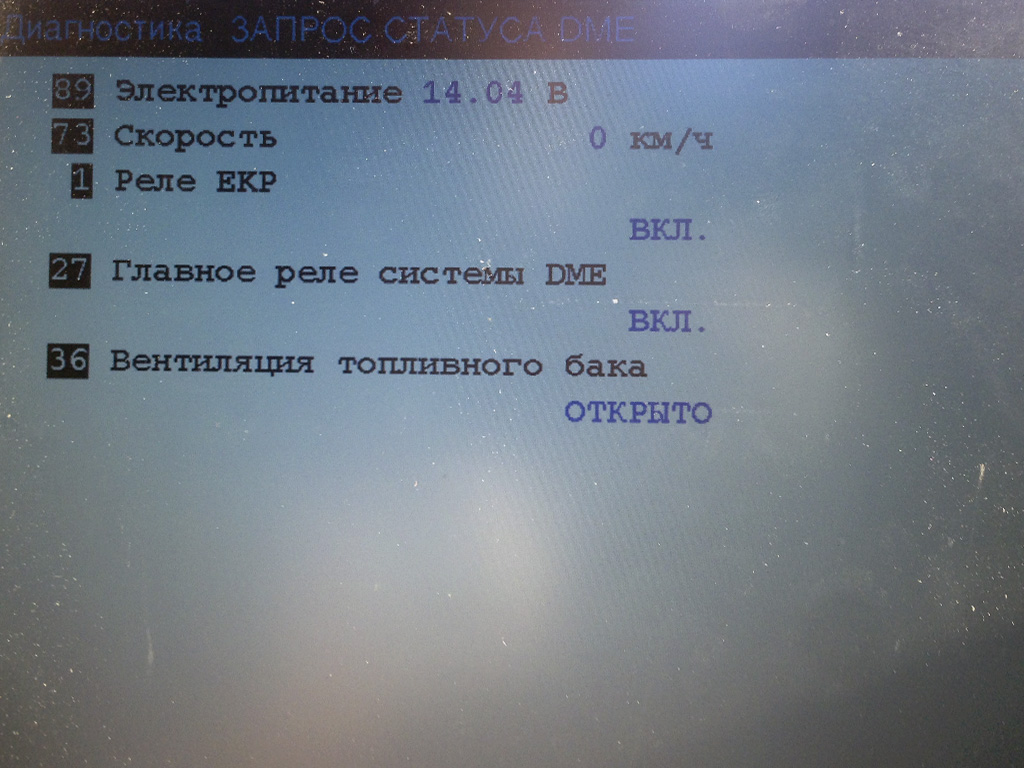

 89   Power supply: 14.04 V



 73   Vehicle speed: 0 km/h



 1   Fuel pump relay: activated



 27   DME main relay: activated



 36   Fuel tank ventilation valve: activated

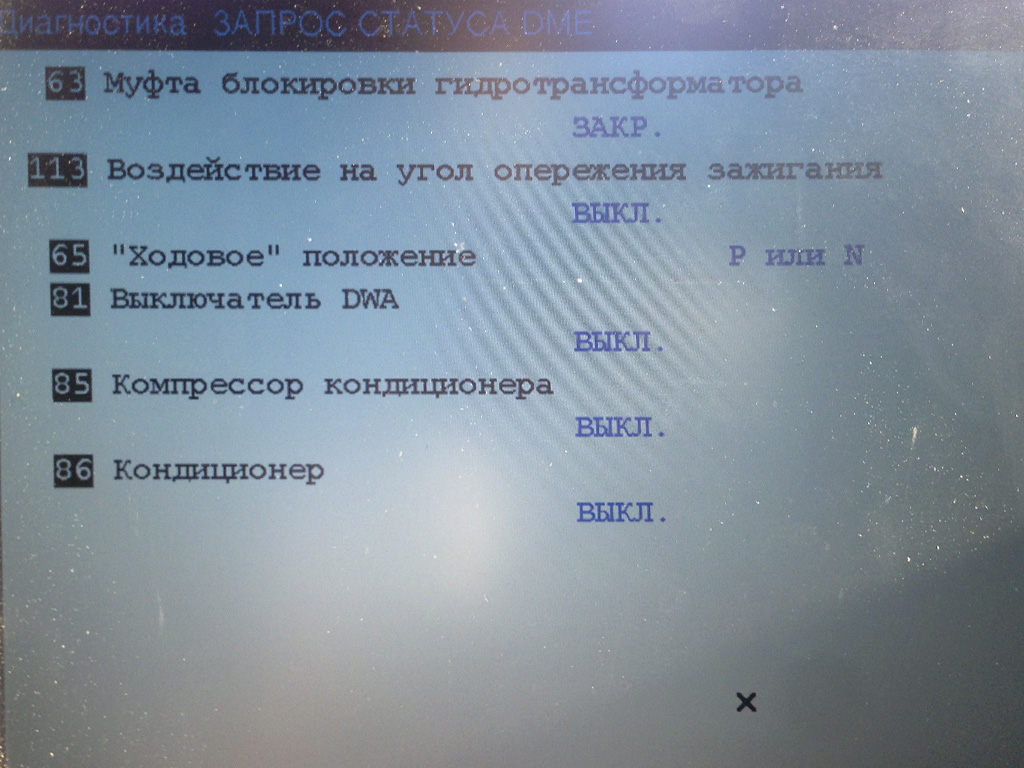

 63   Torque converter lockup clutch: not activated



 113   Ignition timing correction: not active



 65   Drive position: P/N



 81   DWA alarm switch: not activated



 85   A/C compressor: OFF



 86   Air conditioning: OFF
